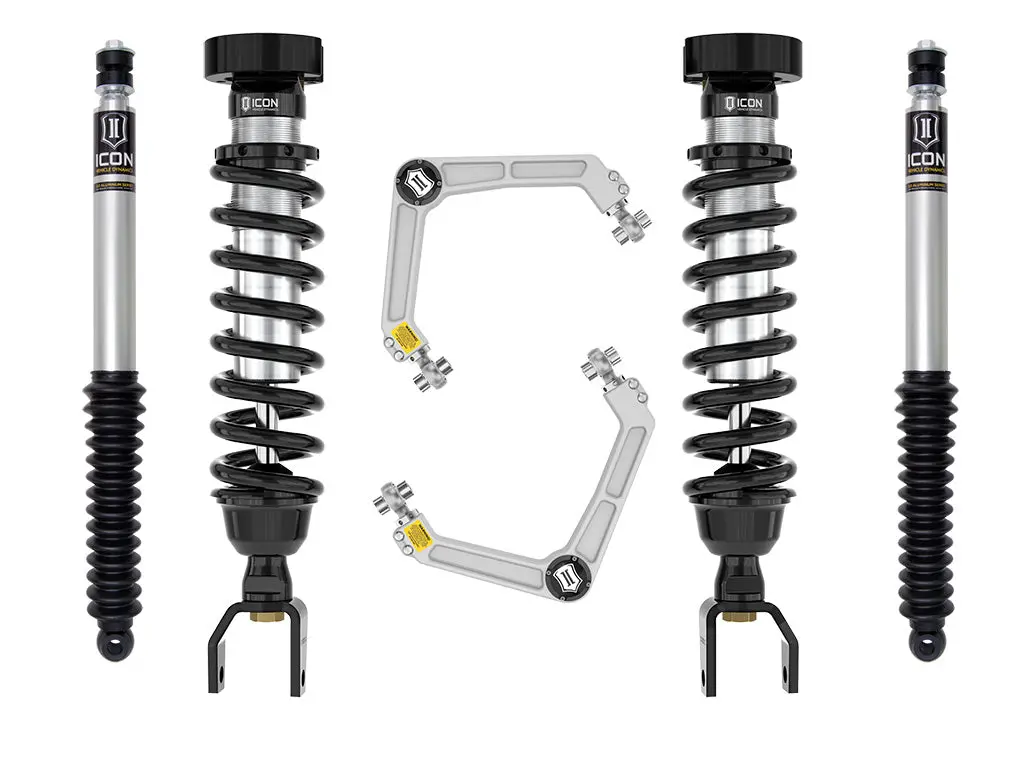

Stage 5 suspension lift system for 2019 and newer Ram 1500 trucks—compatible with both 2WD and 4WD models—providing up to 1.5 inches of lift and featuring durable tubular upper control arms.

Description

This system features upper control arms with ICON’s patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application – exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

• Adjustable coilovers from 0-1.5″ of lift height allow for fitment of larger and more aggressive tires
• Corrosion resistant CAD plated coilvoer shock bodies with 7/8? shafts
• Rear 2.5 Aluminum Series piggyback shocks feature one-piece impact extruded aluminum cylinders and 7/8″ shafts
• FK rod end bearings for extended longevity and minimal deflection
• ICON upper control arms improve suspension geometry for predictable handling
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• 1.5″ lift, dual rate rear coil springs offer incredible ride quality and increased suspension performance
• Fits 2WD & 4WD applications
• 6061 Aircraft grade aluminum CNC machined components
• Shocks are fully rebuildable and revalvable
• 100% Bolt-on system – no drilling, cutting, or welding necessary for install
• ICON 2.5 Series shocks feature vehicle specific tune for superior performance and ride quality
• Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression damping changes to suit all types of terrain and vehicle cargo configurations

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103415437
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• California Prop 65 Warning: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5″ Backspace / 0mm Offset
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 1.5
• 7325: 2
• 7326: 2

Extended Information:

• Country of Origin: US
• Emissions : Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 12.0000 x 6.0000 inches
• Weight: 130.0000 lb
