Description
This system features upper control arms with ICON’s patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application – exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

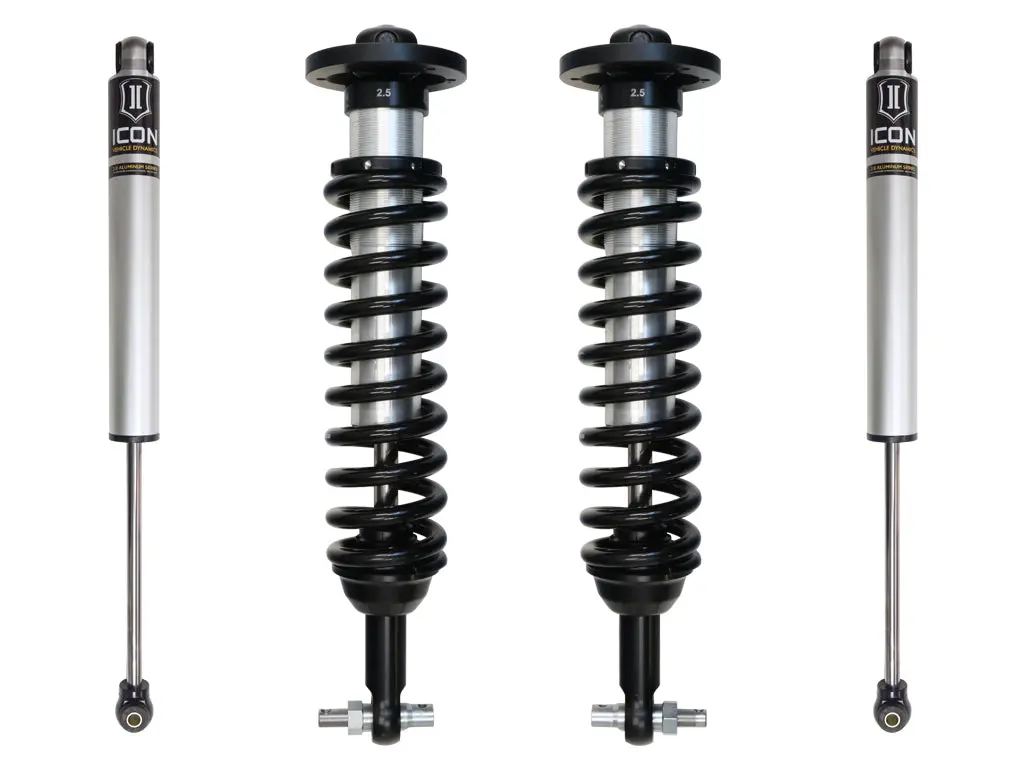

- Increased wheel travel and ride quality over stock with no change in towing capacity
- 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Bolt-on system – No cutting or welding necessary for install
- Unique valving developed for the lighter weight of the 2015-2020 F-150
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- Adjustable coilovers from 2-2.63″ of lift height
- Tubular Upper Control Arms for added strength, durability, and alignment spec range
- ICON CDC Valve allows quick and easy end-user compression adjustment
- Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
- High strength alloy CNC machined lower bar pin
- FK rod end bearings for extended longevity and minimal deflection
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103420097
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
- California Prop 65 Warning: Yes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset
- 30: Yes
- 2064: Steel
- 2371: NO
- 3096: Black
- 3097: Yes
- 3390: Performance
- 5520: 2.63
- 7325: 2
Extended Information:
- Country of Origin: United States
- Emissions : 4
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 27.0000 x 12.0000 x 6.0000 inches
- Weight: 109.0000 lb
