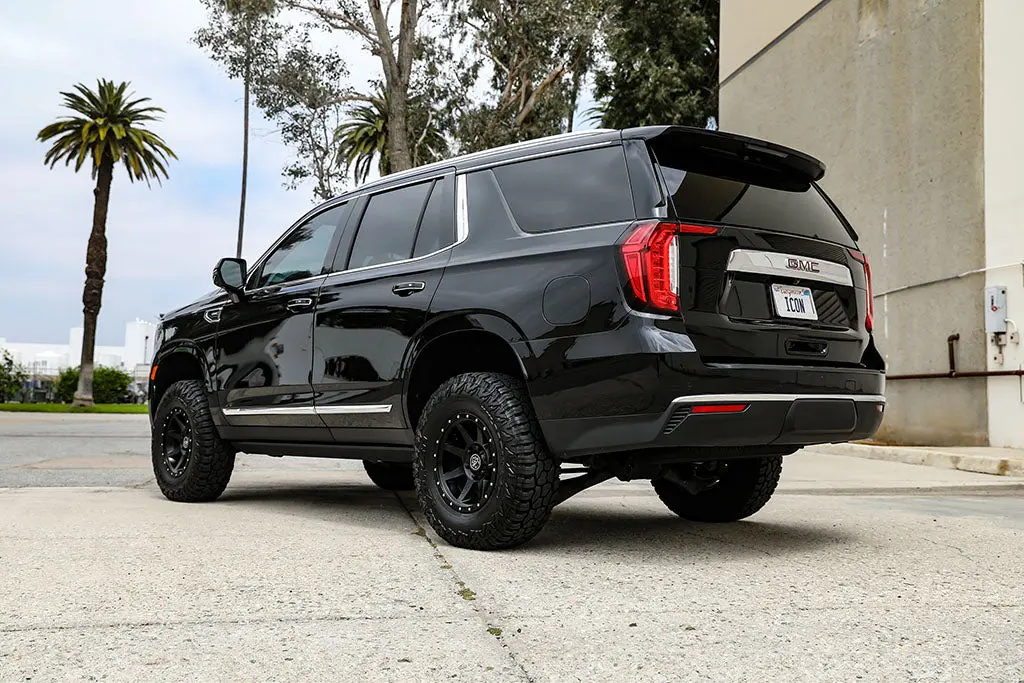

Icon Stage 4 Suspension Lift Kit — 2.5 to 3.25 Inches for 2021–2023 Chevrolet Tahoe, Suburban, GMC Yukon, and Yukon XL with Billet Upper Control Arms

Description

This system features billet aluminum upper control arms with ICON’s patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application – exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

• Adjustable front coilovers provide 2.5-3.25” of front lift height
• Fabricated rear toe links allow for proper rear end alignment with taller ride height
• FK Rod End bearings provide extended longevity and minimal deflection
• Shocks are fully rebuildable and re-tunable
• Adjustable rear coilovers provide 3-4” of rear lift height
• Increased lift height allows for fitment of larger and more aggressive tires
• Up to 20% increase in front wheel travel over stock
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• 2.5 Series coilovers feature corrosion resistant CAD plated shock bodies with 7/8″ shafts
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• All shocks are ICON CDCV equipped for 10 settings of external compression damping adjustment
• Billet Upper Control Arms with Delta Joint ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103430041
• Active or Passive Suspension: Passive
• Add-On Part: 191013 – NIPPLE GREASING ADAPTER KIT
• Adjustable Compression: Yes
• Adjustable Damping: Yes
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Damping Adjustment Type: Manual
• Front Spring Rate Type: Linear
• Maximum Lift Front: 3.25
• Maximum Lift Rear: 4
• Minimum Lift Front: 2
• Minimum Lift Rear: 2.5
• OEM Wheels & Tires Fitment: Yes
• Rear Spring Rate Type: Linear
• Recommended Aftermarket Tires: 33″x12.50″ (Larger tires may fit but fender trimming and modifications may be required)
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” Backspace / 0mm Offset
• Reservoir Style: Remote
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 3.25
• 7325: 2
• 7326: 2

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 13.0000 x 8.0000 inches
• Weight: 160.0000 lb
