Description

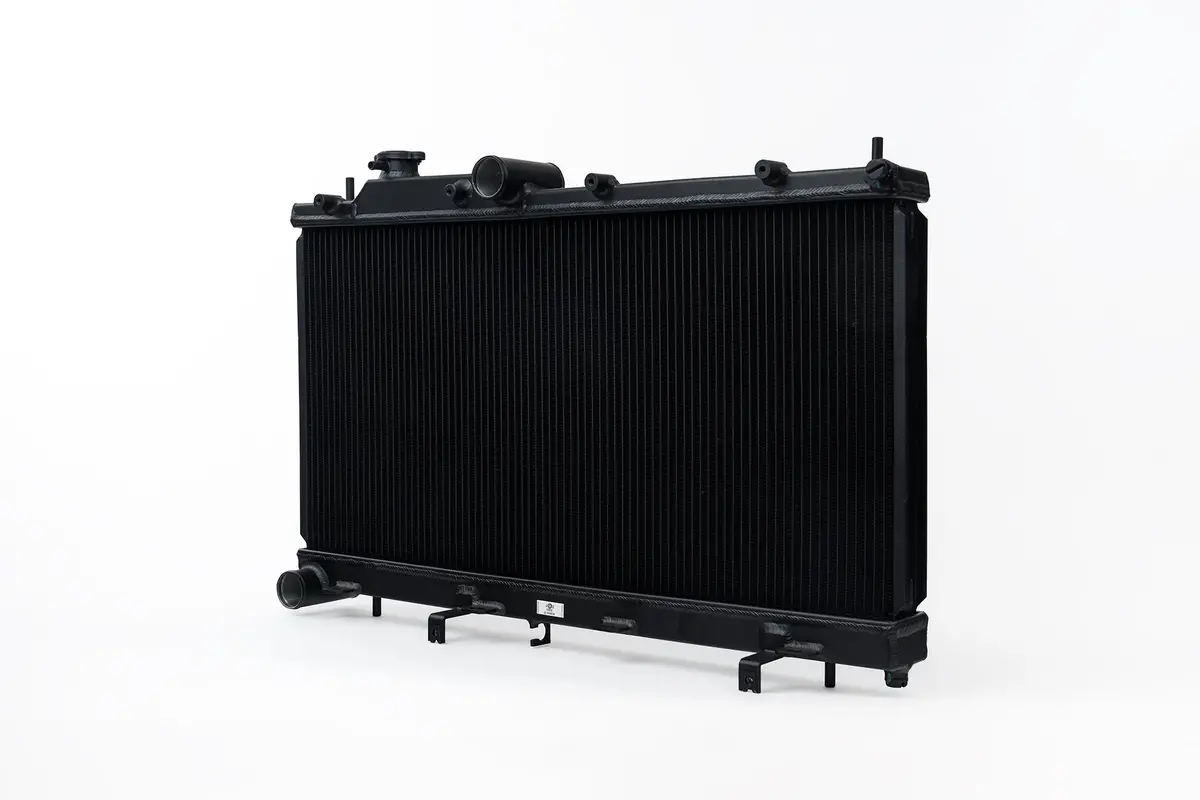

The CSF WRX/STI radiator is a true “Drop-in fit” design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators.
- High-Performance Core Features CSF’s Exclusive B-Tube Technology
- Supersedes CSF #7042
- Core Featured Ultra Efficient 6.5mm Tall Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- 100% All-Aluminum TIG-Welded Construction
- CNC Machined Mounting Brackets
- Innovative “Multi-Fit” Combo Pipe and Plug Design, Included
- True “Drop-in Fit” Requires No Modifications to Install
- Individually Leak and Pressure Tested
- Black Finish for High-End Stealth Look
- For Manual Transmission Only
Attributes:
- Brand Name: CSF Cooling – Racing & High Performance Division
- GTIN: 00710353070956
- ADD-ON: 7094B
- Coolant Hose Inlet Connection Type: OE Type Connection
- Coolant Hose Outlet Connection Type: OE Type Connection
- Core Height: 13.375 in.
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 1.625 in.
- Core Width: 27.0625 in.
- Down Flow Or Cross Flow Type: Down Flow
- Finish/Color: Black
- Frame Included: No
- Grade Type: Performance
- Inlet Connector Type: Slip On
- Inlet Diameter: 1.5625 in.
- Inlet Location: Top Center
- Installation Type: Drop-In Fit Installation
- Internal Engine Oil Cooler: No
- Internal Transmission Oil Cooler: No
- Mounting Hardware Included: No
- Mounting Type: Mounts with OE Hardware
- Outlet Connector Type: Slip On
- Outlet Diameter: 1.5625 in.
- Outlet Location: Bottom Left
- Radiator Cap Included: Yes
- Tank Material: Aluminum
- Thermostat Included: No
Extended Information:
- Country of Origin: ID
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 31 x 6 x 22 inches
- Weight: 14 POUNDS
