BMW E30 M3 Aluminum Performance Radiator

Description

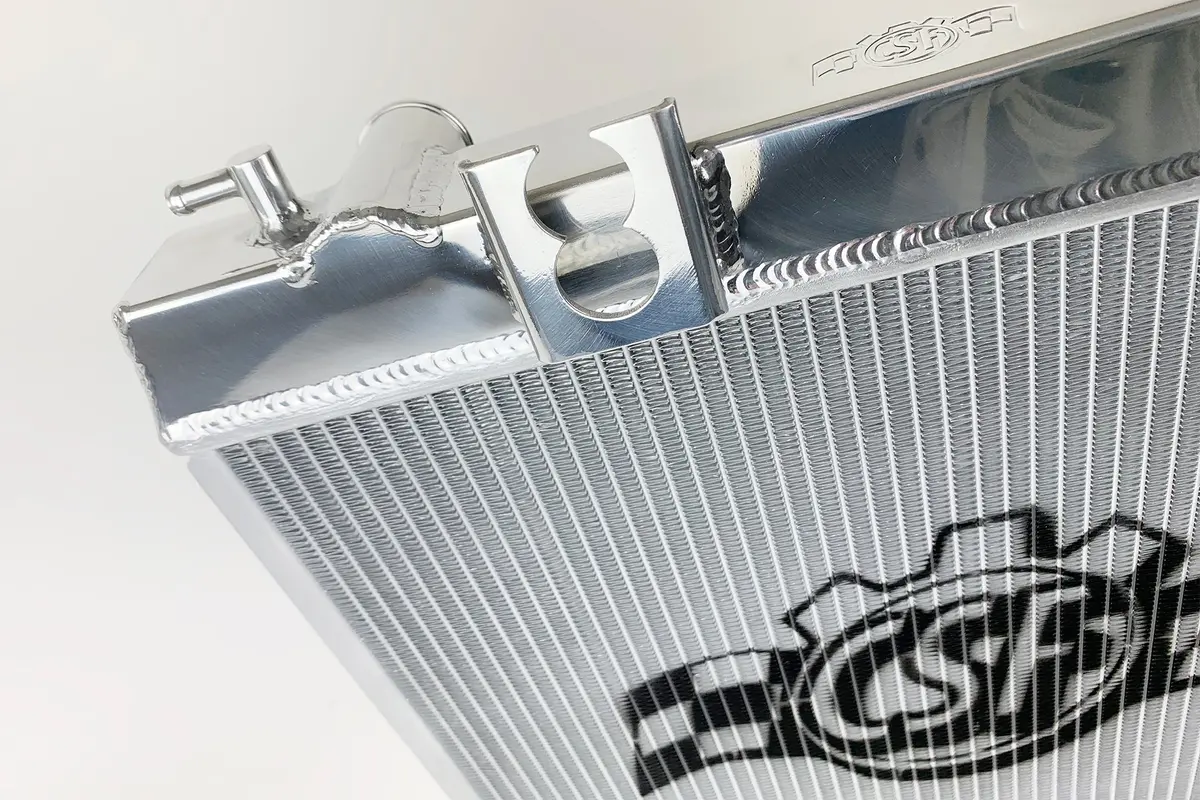

The CSF E30 M3 radiator is a true “Drop-in fit” design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators.

• CSF’s Exclusive B-Tube Technology
• 1-1/4″ Core Features an Ultra-Efficient Fin with a Multi-Louvered Design for Maximum Surface Area Contact
• Slip-On 1-3/8″ Inlet/Outlet Connections
• CNC Machined Brackets and Fittings for Superb Fit and Durability
• All-Aluminum Race Style Drain Plug
• 1-Hour “Mirror Finish” Hand Polish
• “Drop-In Fit” Requiring No Modifications to Install – Accepts All Attaching OEM Components Including “Quick Connect” Hoses, AC Condenser, Mounting Brackets and Fan Shroud
• Replaces OEM Part Number: 17111468084

Attributes:

• Brand Name: CSF Cooling – Racing & High Performance Division
• GTIN: 00710353070635
• Coolant Hose Inlet Connection Type: OE Type Connection
• Coolant Hose Outlet Connection Type: OE Type Connection
• Core Height: 14.75 in.
• Core Material: Aluminum
• Core Row Quantity: 1
• Core Thickness: 1.25 in.
• Core Width: 17 in.
• Down Flow Or Cross Flow Type: Down Flow
• Finish/Color: Polished
• Frame Included: No
• Grade Type: Performance
• Inlet Connector Type: Slip On
• Inlet Diameter: 1.375 in.
• Inlet Location: Top Right
• Installation Type: Drop-In Fit Installation
• Internal Engine Oil Cooler: No
• Internal Transmission Oil Cooler: No
• Mounting Hardware Included: No
• Mounting Type: Mounts with OE Hardware
• Outlet Connector Type: Slip On
• Outlet Diameter: 1.375 in.
• Outlet Location: Bottom Right
• Radiator Cap Included: No
• Tank Material: Aluminum
• Thermostat Included: No

Extended Information:

• Country of Origin: ID
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23 x 7 x 23 inches
• Weight: 12 POUNDS
