Description
Two 1/8″ NPT ports are located on the top of the back water plate. These ports can be used to measure inlet/outlet water temps as well as used as breather ports to help in the bleeding procedure. 1/8th NPT plugs come included in the supplied hardware kit. Please follow OEM BMW or Toyota bleeding procedure which takes roughly 15 minutes to complete.
- Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core – 25% larger than the standard Gen-2 B58 Super Manifold (CSF#8200) – 15 Rows of Water Cooling vs. CSF #8200 12 Rows and OEM 6 Rows

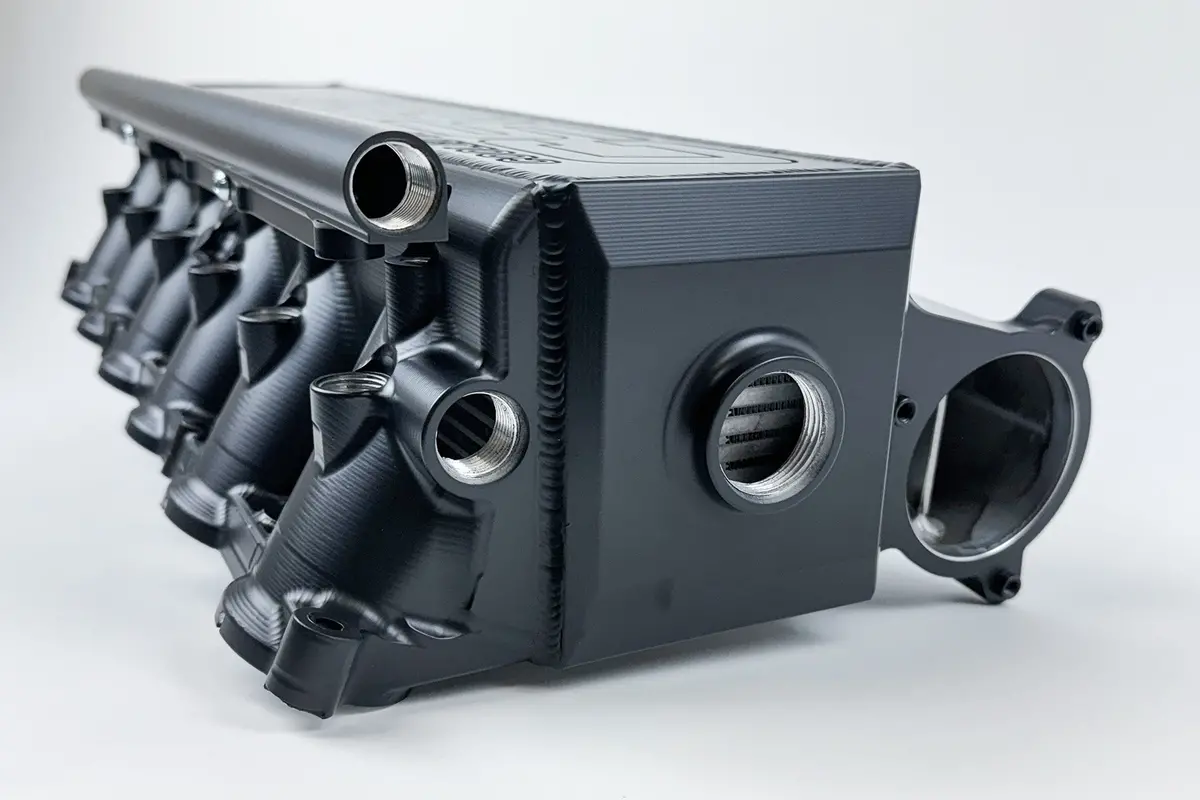

- Individual 1/8″ NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Bleeding
- Included KIYLEX Thermal Rejection Manifold Spacer – Proven to lower intake manifold temperatures by up to 15%
- Some modifications to install – this product is intended to be installed only by a skilled and experience technician who is familiar with the B58 engine platform
- Includes Hardware and Installation Kit with Picture Diagrams and Instructions

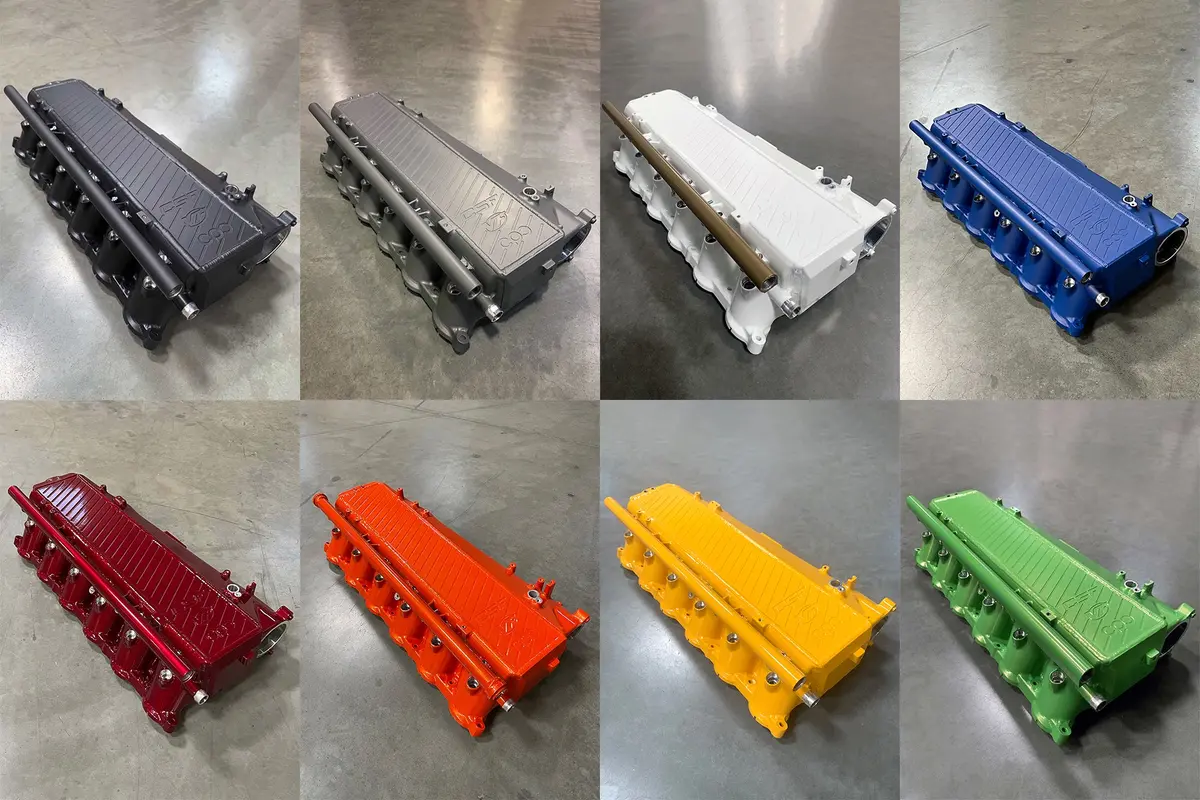

- Comes Finished in Thermal Black Heat Dispersion Cerakote (Available in Raw Billet – CSF #8400 or Custom Finishes – CSF #8400C)
- Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
- Core can be setup for dual or single pass: The -16 ORB bung on front water end plate can be used to adjust the flow configuration to single-pass and/or to be used with an ice-box setup. Includes CNC machined plug for dual-pass configuration
- Designed in SolidWorks Using Computational Fluid Dynamics (CFD)
- Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
- Improved slotted mounting holes on throttle body side for easier installation
- Easy Access to Spin-Off Oil Filter for Quick Oil Changes
- Integrated Sensor Pad with Two 1/4″ and Three 1/8″ NPT Ports to Measure Additional Parameters or Extra Sources of Vacuum
- Included Fuel Rail for Top Feed Port Injection
- Individual 1/8″ NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection – Allows for Even Spray Distribution and Control for Maximum Performance
Attributes:
- Brand Name: CSF Cooling – Racing & High Performance Division
- GTIN: 00710353084007
- ADD-ON: 8154
- Color: Thermal Black Heat Dispersion Cerakote
- Core Color: Raw Aluminum
- Core Height: 125mm
- Core Length: 103mm
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 125mm
- Core Width: 540mm
- Grade Type: Performance
- Inlet Fitting Gender: Male
- Inlet Tank Material: Billet Aluminum
- Installation Type: Drop-In Fit Installation
- Mounting Hardware Included: Yes
- Outlet Fitting Gender: Male
- Outlet Thread Size: 3/4″ – 10
- Outlet Thread Type Standard: UNC
- Type: Air-to-Water
- Universal Or Specific Fit: Specific
Extended Information:
- Country of Origin: Australia
- Emissions : Racing or Pre-Emissions Use Only
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 28 x 15 x 10 inches
- Weight: 26 POUNDS
