Description

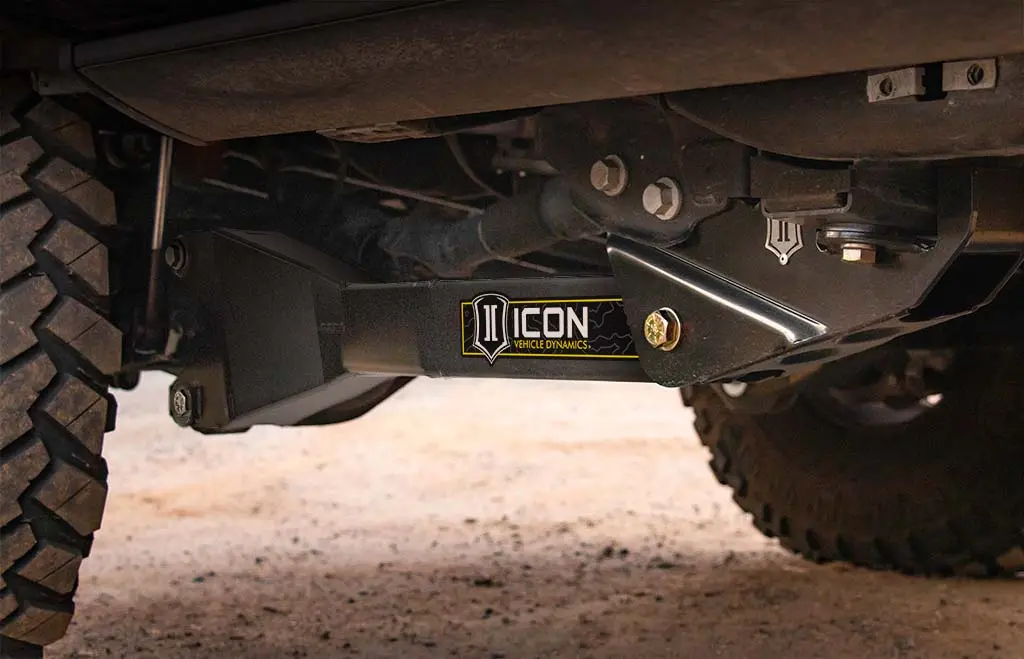

This Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

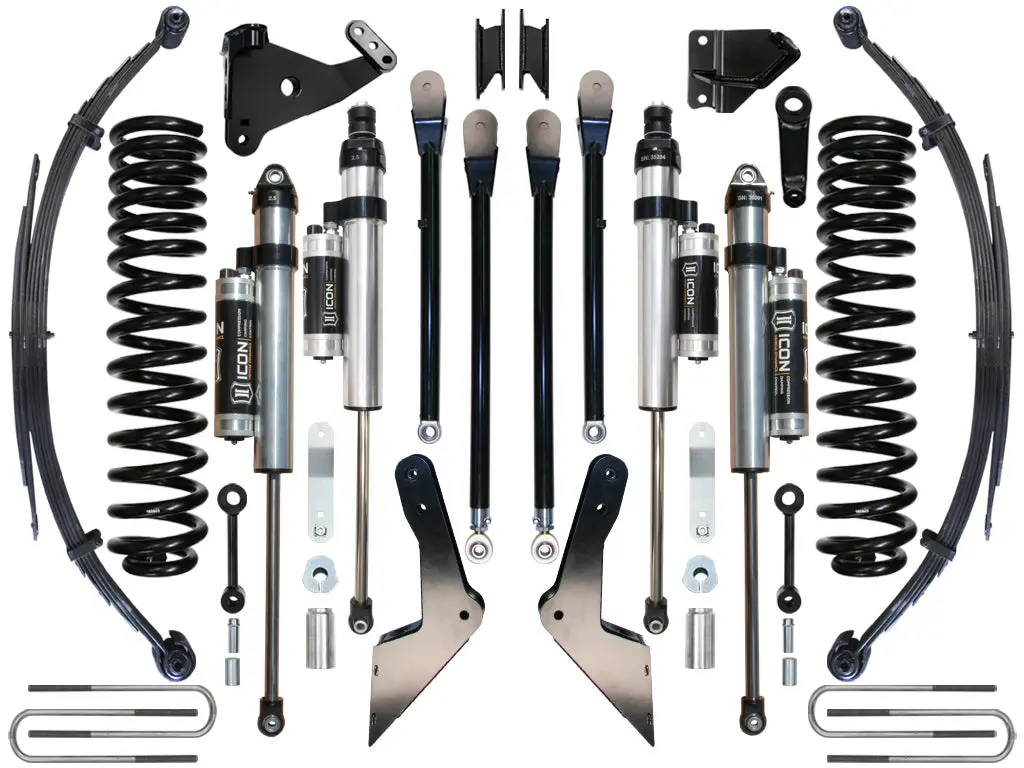

- Increased wheel travel and ride quality over stock with no change in towing capacity
- Decreased body roll
- ICON engineered dual rate coil springs with match tuned 2.5 Series reservoir shocks w/ CDCV
- Shock absorbers feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
- Correctly positioned steering and track bar components
- Rear progressive design leaf pack for smooth compliant ride
- No drive shaft modifications needed
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103419022
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- California Prop 65 Warning: Yes
- Dual Rate Coil Springs: Yes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 37″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset
- 30: Yes
- 2064: Steel
- 2371: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 5520: 7
- 6111: 7
- 7325: 2
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 48.0000 x 48.0000 x 10.0000 inches
- Weight: 553.0000 lb
